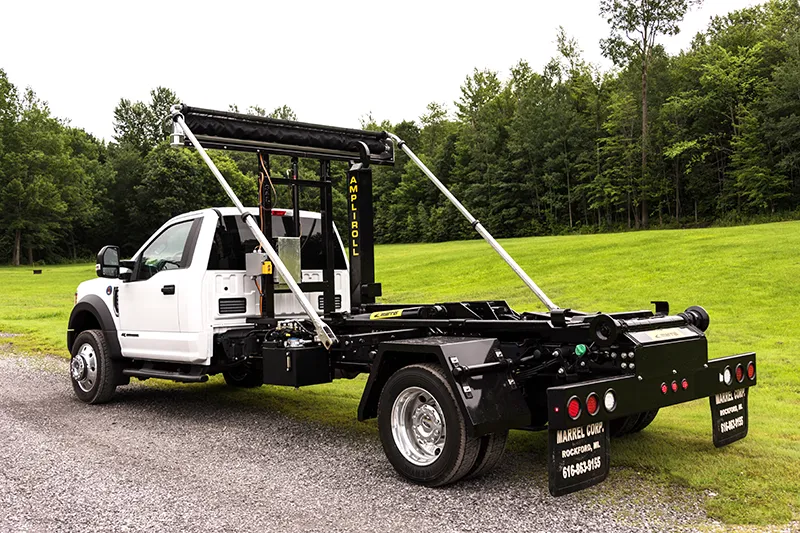

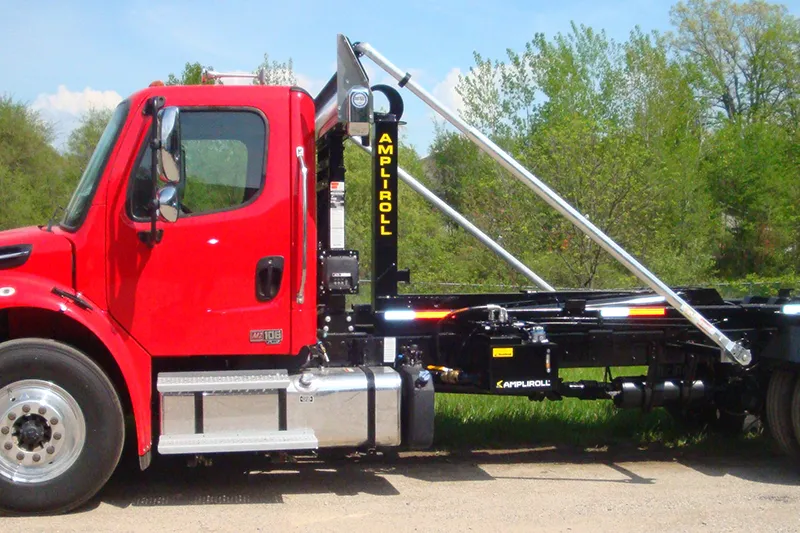

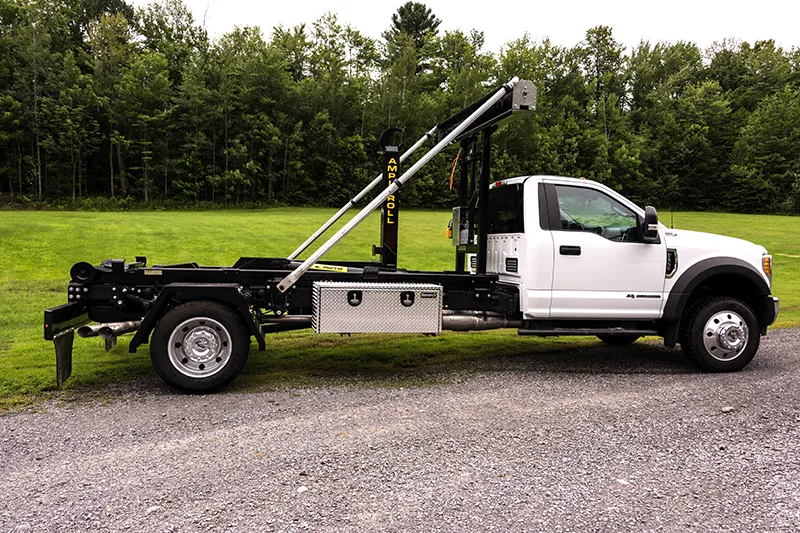

Hooklift AL 100 Series — 20,000 Pounds

The AMPLIROLL® USA Hooklift AL 100 Series with lifting capacity of 20,000lbs is designed to pick up, dump, transport and unload your containers with speed and safety in mind. The telescopic Jib concept enables a perfect load distribution with all your bodies. The high build quality standards assure versatility, durability, and long life. Our hooklifts are optimized to prove the highest power with the least weight added to your truck. All hydraulic systems are manufactured by MARREL Corporation.

Technical Features
  • Designed to handle containers between 10 and 17.5 feet of length.
  • 54” standard hook height.
  • Shipping weight of 2408-2417lbs.
  • Dump angle of 54-60 degrees.
  • Body length of 10-17.5’.
  • Axial piston pump with 5,700 psi, 11GPM @ 1,200 RPM.
